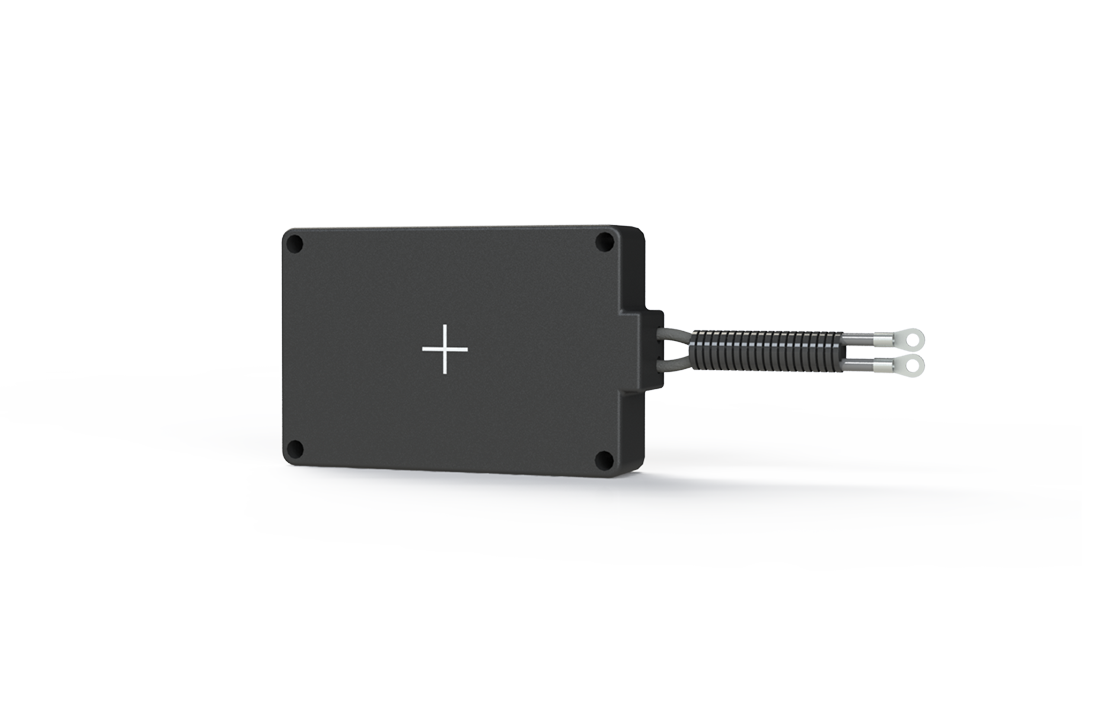

Waterproof 1200W-48V-20A Wireless Charger (Spit)

Suitable for AGV/AMR robots High degree of freedom

1. The waterproof 1200W split-type wireless charger is a product independently developed by WIRELESSPT suitable for four-way shuttle vehicle products.


2. It can be applied to various mobile robots with requirements for waterproof and moisture-proof, such as wireless charging for handling robots. It enables automatic charging of the robots, achieves unmanned operation, reduces maintenance costs, and ensures safe and convenient use.


Request an offer Specifications

Product video

PRODUCT FEATURES

  • With waterproof function, protection level up to IP66.

  • Suitable for all kinds of harsh environments.

  • No need to manually plug and unplug, to achieve true unattended.

  • Non-contact charging, no risk of electric shock.

SPECIFICATION PARAMETERS

Waterproof 1200W-48V-20A Wireless Charger (Spit)
  • Tx Input voltage
  • 176~264VAC
  • Rx Output voltage
  • 35~60V
  • Rx Output current
  • 0~20A
  • Rx output power
  • 1200W
  • Working distance

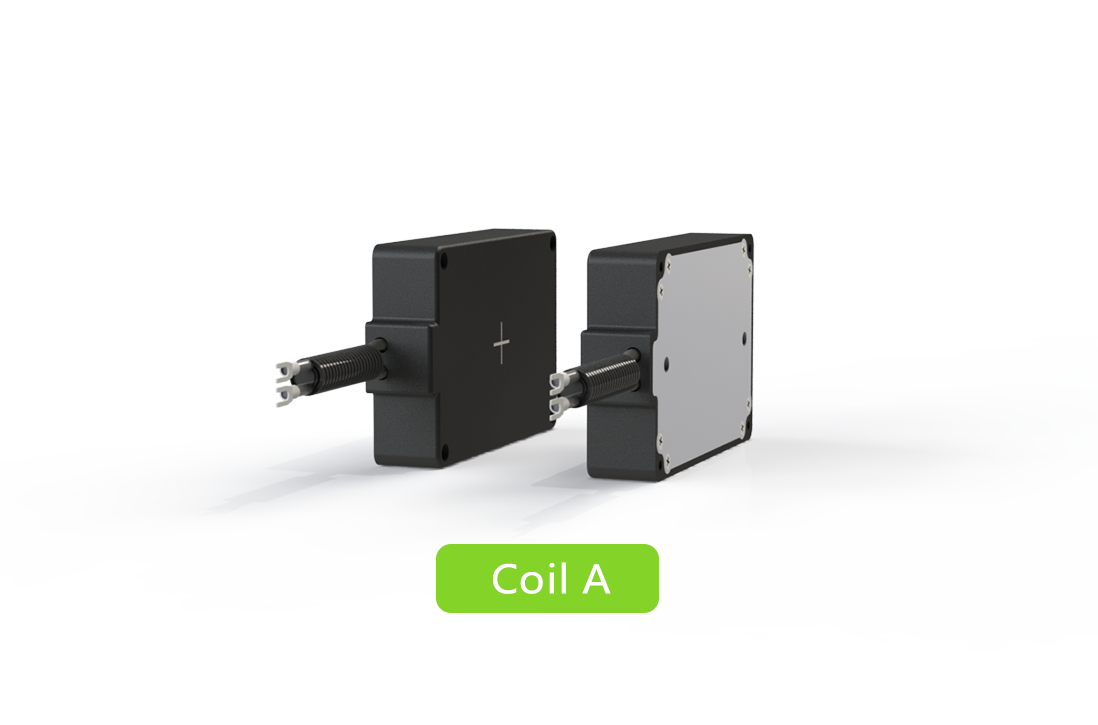

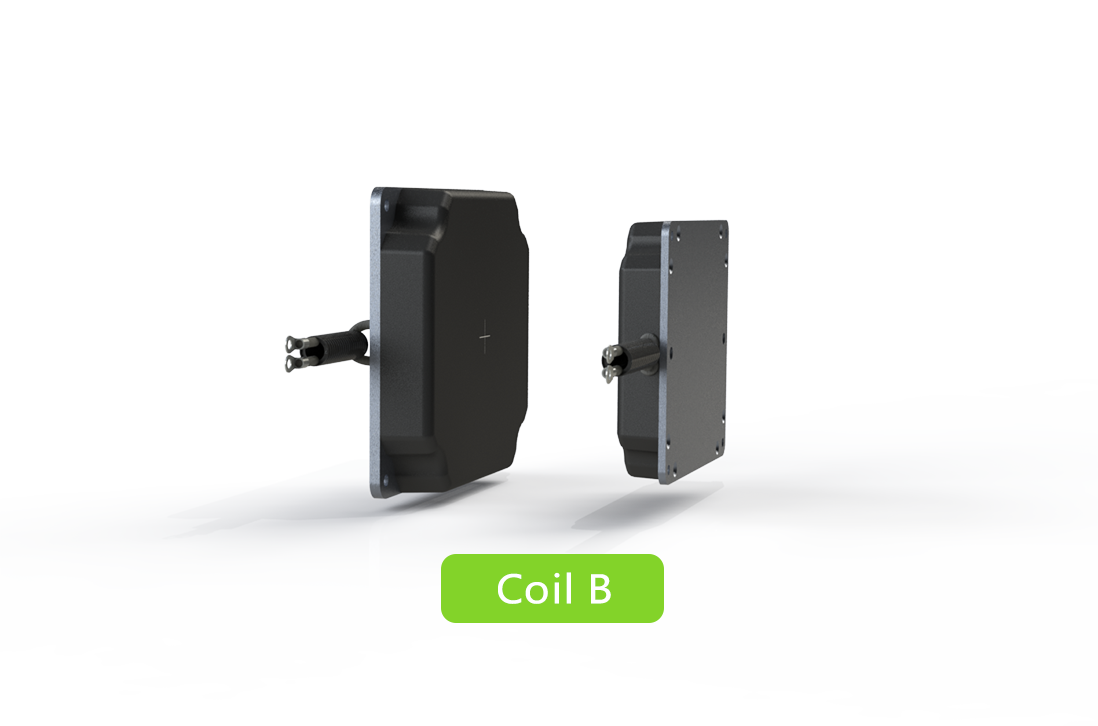

  • 0-20mm(Coil A) 0-50mm(Coil B)
  • Horizontal migration
  • Long axis 20mm short axis 10mm(Coil A) Long axis 50mm short axis 10mm(Coil B)
  • Tx dimension
  • 273mm*131mm*45mm(Controller) 150mm*100mm*32mm(Coil A) 190mm*170mm*35mm(Coil B)
  • Rx dimension
  • 150mm*100mm*50.5mm(Controller) 150mm*100mm*32mm(Coil A) 160mm*140mm*28mm(Coil B)
Product and specification flyer download
Get Oficial Technical Support And Product Quotes Now

Installation method

  • Surface Mounting

  • Flush Mounting

Related Products

APPLICATION SCENARIO

  • Auto Forklift Truck

  • Heavy Duty AGV/AMR

  • Cold Chain Logistics AGV

  • Outdoor AGV
